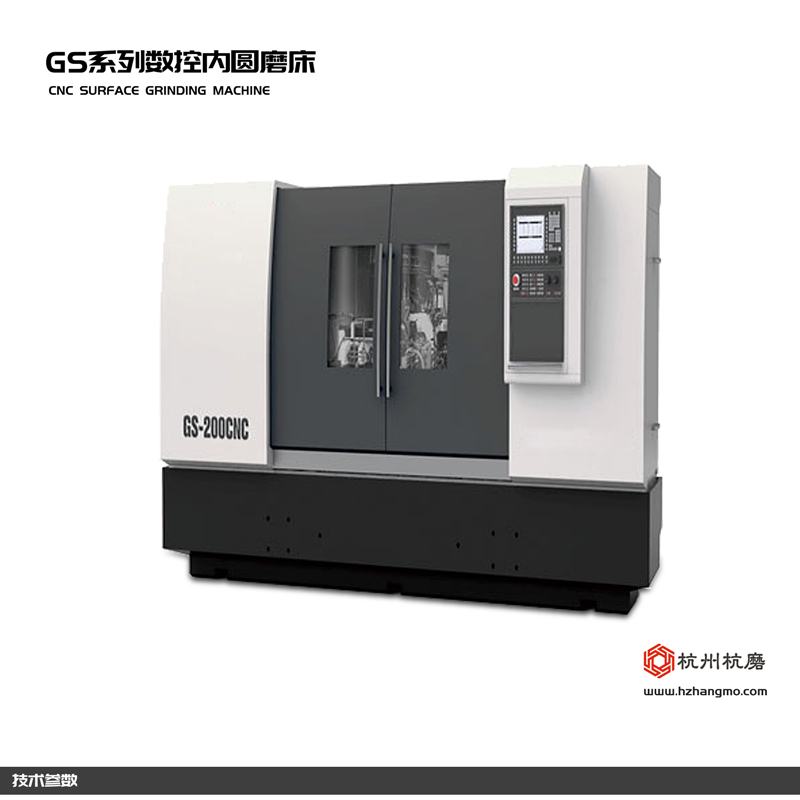

GL/GS系列数控内圆磨床_杭州杭磨一机精密机床制造有限公司

專案/機型Projec U model		GI-200CNC	GS-200CNC	GS-300CNC
加工能力Processing capacity l	研磨外徑Maximum grinding diameter	0200mm	0300mm	0300mm
	内徑研磨範圈Inner diameter grinding range	02~0150mm	02~0200mm	02~0200mm
	主輪臺旋徑Main wheel abutment diameter	0300mm	0350mm	0350mm
	工件重量Maximum workpiece weight	20kg	40kg	50kg
主輪臺Main wheel	夾爪型態Gripper type	6油壓三爪夾頭6 hydraulic three jaw chuck	6油壓三爪夾頭6 hydraulic three jaw chuck	8"油壓三爪夾頭8"hydraulic three jaw chuck
	x軸行程Xaxis travel	500	600	700
	快速移動速率m/minFast moving speed m/min	10	10	10
	進给量Minimum feed	0.001	0.001	0.001
	主輪臺主軸轉速(可調)rpmMain wheel spindle speed(adjustable) rpm	0~1000	0~1000	0~1000
ID砂輪頭(Z1軸)ID wheel head(Z1axis)	内研磨砂輪尺寸Internal grinding wheel size	02-0100	02-0100	02-0100
	内研磨主軸轉速rpmInternal grinding spin de speed rpm	20000/36000/50000	20000/36000/50000	20000/36000/50000
	z1軸行程Z1axis stroke	380mm	480mm	580mm
	快速移動速率m/minFast moving speed m/min	10	10	10
	進给量Minimum feed	0.001	0.001	0.001
Id砂輪頭(Z2軸)ID wheel head(Z2axis)	内研磨砂輪尺寸Inte mal grinding wheel size		02-0100	02-0100
	内研磨主軸轉速rpmInternal grind ng spindle speed rpm	-	20000/36000/50000	20000/36000/50000
	Z2轴行程Z2axis stroke	-	480mm	580mm
	快速移動速率m/minFast moving speed m/min	-	10	10
	進给量Minimum feed	-	0.001	0.001
切削液系統Cuting f uid system	水箱容量LWater tank capacity L	120	120	120
	處理能力L/minProcessing capacity L/min	20	20	20
	泵浦馬達輸出功率kwPump motor output power kw	0.18(4P)	0.18(4P)	0.18(4P)
潤滑系統Lubrication system	潤滑油箱容量LLubricant tank capacity L	20	20	20
潤滑系統Lubrication system	泵浦馬達輸出功率kwPump motor output power kw	0.18(4P)	0.18(4P)	0.18(4P)
油壓系統Hydraulic system	油壓油箱容量LHydraulic oil tank capacity L	60	60	60
油壓系統Hydraulic system	泵浦馬達輸出功率HPPump motor output power HP	2(4P)	2(4P)	2(4P)
機臺外觀/尺寸/重量Machine appearance/size and weight	機釿金Machine sheetmetal	全密式飯金護罩	全密式金護罩	全密式金護罩
	净重/毛重kgsNet weght gross weight kgs	2500/3200	2800/3500	3200/3800
	包裝尺寸(長×寬×高)Packing size(length x width xheight)	2400x2200x1900	2600x2400×1900	2800x2400x1900
