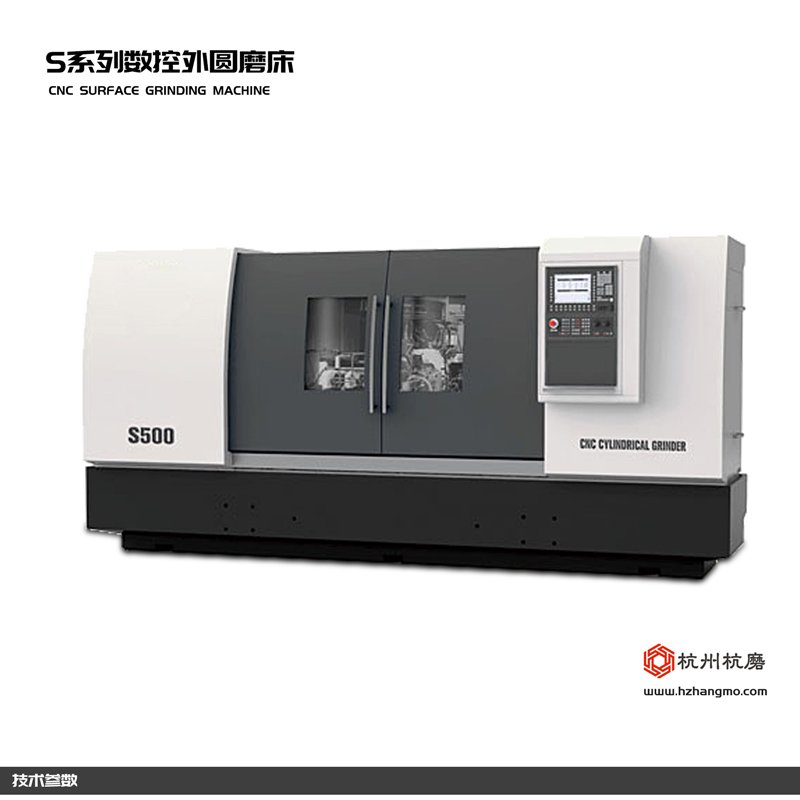

| 項目/機型Project model | S500(A.B.C) | S750(A.B.C) | S1000(A.B.C) | S1500(A.B.C) |
| 旋徑Maximum diameter | 0260mm | 0260mm | 0320mm | 0320mm |
| 磨削直徑Maximum gnd ing diameter | 0250mm | 0250mm | 0300mm | 0300mm |
| 工件長度Maximum length of workpiece | 500mm | 750mm | 1000mm | 1500mm |
| 工件重量Maximum weight of workpiece | 50kg | 80kg | 100kg | 100kg |
| 砂輪外徑Outer diameter of grinding wheel | 0400mm | 0400mm | 0500mm | 0500mm |
| 砂輪寬度Wheel width | 50mm | 50mm | 75mm | 75mm |
| 砂輪内徑Inner diameter of gindin g wheel | 0203mm | 0203mm | 0203mm | 0203mm |
| 砂輪主軸轉速Spindle speed of gnd ing wheel | 1800rpm/分 | 1800rpm/分 | 1650rpm/分 | 1650rpm/分 |
| 進給角度Feed angle | 90° | 90° | 90° | 90° |
| 砂輪臺行程(x軸)Wheel table stroke(Xaxis) | 200mm | 200mm | 220mm | 220mm |
| 砂輪進給單位Minimum feed unit of grinding wheel | 00.001mm | 00.001mm | 00.001mm | 00.001mm |
| 旋轉角度Rotation angle | 3/7(顺、逆時針) | 3/7(順、逆時針) | 3/7(順、逆時針) | 3/7(順、逆時針) |
| B軸旋轉(選配)Bax s rotation(op tonal) | 180*+-5° | 180°+-5° | 180°+-5° | 180*+-5° |
| 工作主軸轉速Work spindle speed | 50-500rpm | 50-500rpm | 50-500rpm | 50-500rpm |
| 頂心規格Top center spec fications | MT4 | MT4 | MT4 | MT4 |
| 尾座從向移位行程Shit stroke of tailstock from direction | 550mm | 800mm | 1050mm | 1550mm |
| 尾座套筒行程Tailstock sleeve stroke | 30mm | 30mm | 30mm | 30mm |
| 砂輪軸馬達Wheel Shaft Motor | 5HP | 5HP | 10HP | 10HP |
| 機床尺寸長*宽*高Machine size length*wi dt*height | 2980*2380*2259 | 3180*2380*2259 | 5200*23800*2259 | 5570*2380*2259 |
| 機床净重Machine weight | 3300kg | 3500kg | 4600kg | 5200kg |
